Temperature Datalogger

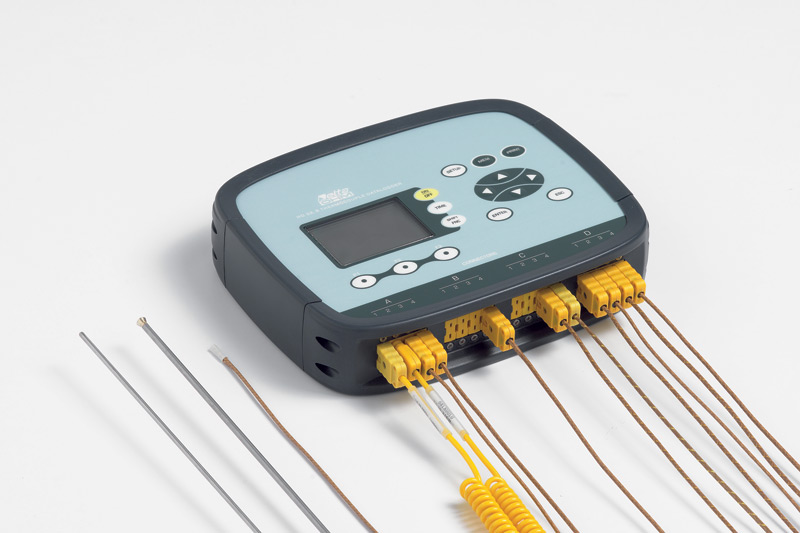

The HD32.8.8 and HD32.8.16 instruments are rugged data loggers. The former has 8 inputs, the latter has 16 inputs. They work with thermocouple probes type K, J, T, N, R, S, B and E with miniature connector.

Configurable unit of measurement : °C, °F, °K.

Use of the HD32.8.8 and HD32.8.16 data loggers: in the field for complex machine or equipment multi measurements, machine testing, pharmaceutical and food industry, oven mapping, air conditioning units, etc.

Technical Details:

Flash memory, organized in 64 blocks, for a total capacity of 800,000 recordings divided among the existing inputs. The recording can be handled in two ways when the available memory is full, the collected data are overwritten starting from the oldest ones (circular memory),

the recording stops when the available memory is full.

Simultaneous display of 4 inputs.

Maximum, minimum or average of the logged values.

Selectable storage interval: 2, 5, 10, 15, 30 seconds, 1, 2, 5, 10, 15, 20, 30 minutes and 1 hour.
Data logging: instantaneous or postponed, with the possibility of selecting the recording start and end time.
Data download: RS232C, 1200…38400 baud or USB 1.1 – 2.0.
DeltaLog9 software, for data download and processing.

LCD backlit graphic display 128×64 pixel.
Security password for keyboard locking.
Instrument setup through the keyboard; no connection required to the PC.
Power supply: 4 1.5V alkaline C-BABY type batteries, external power supply 12VDC-1A or PC USB port.

Consumption @6VDC:

  • <60μA when the instrument is off
  • <60μA in sleep mode with all probes connected
  • <40mA during data logging with all probes connected
