HD 2303 Thermo-Anemometer

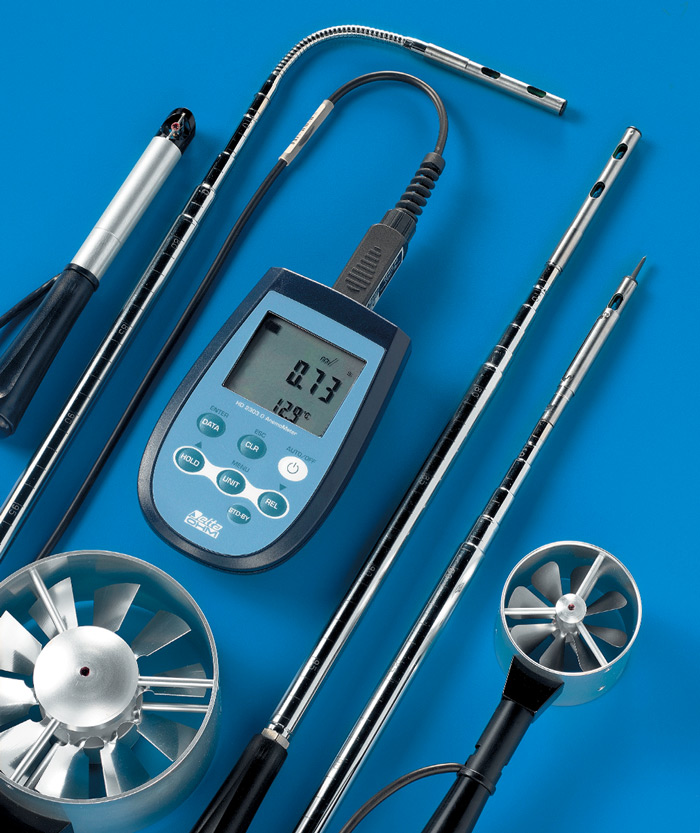

The HD2303.0 is a portable instrument with a large LCD display. It is designed for use in the fields of air conditioning, heating, ventilation and environmental comfort.  It uses hotwire or vane probes to measure air speed, flow rate, and temperature inside pipelines and vents.  Temperature only is measured by immersion, penetration or air contact probes. The temperature sensor used can be chosen from the Pt100, Pt1000.  The probes are equipped with the SICRAM module, with the factory calibration data stored inside.  The Max, Min and Avg function calculate the maximum, minimum or average values.  Other functions include: the relative measurement REL, the HOLD function, and the automatic turning off that can also be excluded.  The instruments have IP67 protection degree.

Product Detail:

Instrument

  • Dimensions – (Length x Width x Height) 140x88x38mm
  • Weight 160g (complete with batteries)
  • Materials ABS
  • Display 2×4½ digits plus symbols
  • Visible area: 52x42mm
 Operating conditions

  • Operating temperature -5…50°C
  • Storage temperature -25…65°C
  • Working relative humidity 0…90%RH without condensation
  • Protection degree IP67
 Power supply

  • Batteries 3 1.5V type AA batteries
  • Autonomy (*) 200 hours with 1800mAh alkaline batteries
  • Power absorbed with instrument off < 20μA
 Measuring unit

  • °C – °F – m/s – km/h – ft/min – mph – knot – l/sm3/min – m3/h – ft3/s – ft3/min
Connections

  • Input module for the probes 8-pole male DIN45326 connector
Measurement of temperature by Instrument

  • Pt100 measurement range -200…+650°C
  • Pt1000 measurement range -200…+650°C
  • Resolution 0.1°C
  • Accuracy ±0.1°C
  • Drift after 1 year 0.1°C/year
